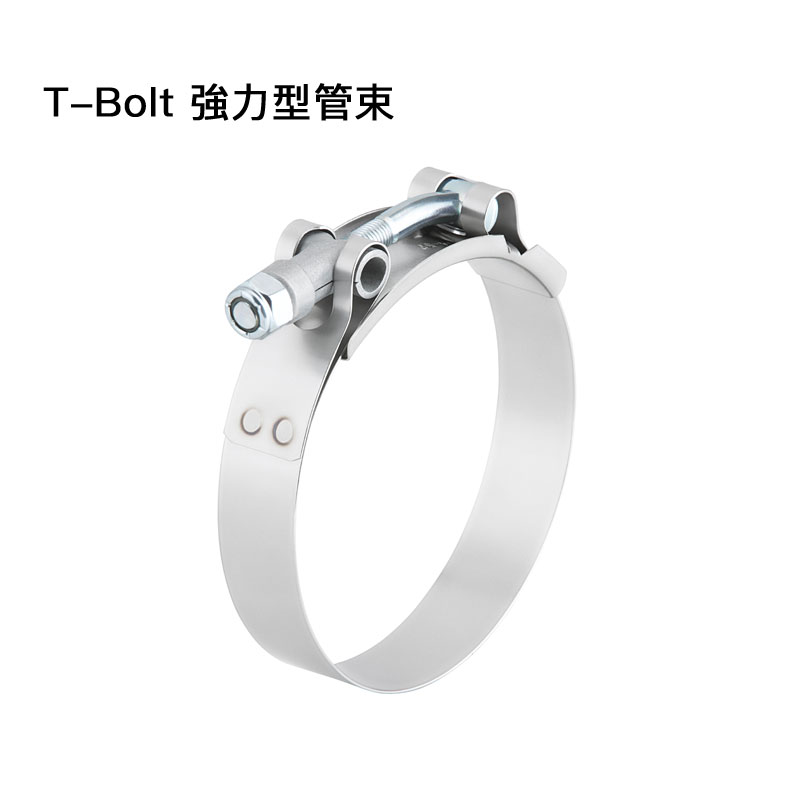

T-Bolt 大口徑型管束
優點
- 標準T型螺栓。
- 高強度緊固結構。
- 特殊浮橋襯墊可避免管壁受損。
- 符合SAE J1508 TB型規範。
- 用於乳品工業、船舶、運輸業、衛生系統...等。
規格
- 鋼帶寬：3/4" (19mm)
- 六角螺絲：7/16" (11mm)
- 安裝扭矩：7 Nm
- 直徑範圍：1-1/4" ~ 8-13/16" (31.8~223.8mm)
- 鋼帶材質：SS301
- 螺栓/螺母材質：SS300系列

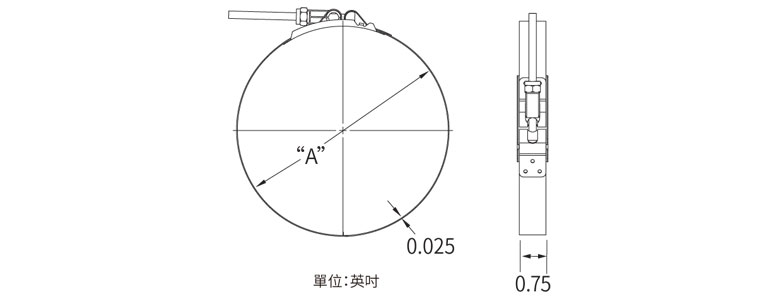

| 型號 |
"A"最小直徑 |
"A"最大直徑 |
| inch |
mm |
inch |
mm |
| TB-125 |
1-1/4" |
31.8 |
1-7/16" |
35.3 |
| TB-138 |
1-3/8" |
34.9 |
1-9/16" |
39.7 |
| TB-150 |
1-1/2" |
38.1 |
1-5/8" |
42.9 |
| TB-163 |
1-5/8" |
41.3 |
1-7/8" |
47.6 |
| TB-175 |
1-3/4" |
44.5 |
2" |
50.8 |
| TB-188 |
1-7/8" |
47.6/td> |
2-3/16" |
55.6 |
| TB-200 |
2" |
50.8 |
2-5/16" |
58.7 |
| TB-213 |
2-1/8" |
54.0/td> |
2-7/16" |
61.9 |
| TB-225 |
2-1/4" |
57.2 |
2-9/16" |
65.1 |
| TB-238 |
2-3/8" |
60.3 |
2-11/16" |
68.3 |
| TB-250 |
2-1/2" |
63.5 |
2-13/16" |
71.4 |
| TB-263 |
2-5/8" |
66.7 |
2-15/16" |
74.6 |
| TB-275 |
2-3/4" |
69.9 |
3-1/16" |
77.8 |
| TB-288 |
2-7/8" |
73.0 |
3-3/16" |
81.0 |
| TB-300 |
2" |
76.2 |
3-5/16" |
84.1 |
| TB-306 |
|
77.8 |
|
85.7 |
| TB-313 |
3-1/8" |
79.4 |
3-7/16" |
87.3 |
| TB-325 |
3-1/4" |
82.6 |
3-9/16" |
90.5 |
| TB-338 |
3-3/8" |
85.7 |
3-11/16" |
93.7 |
| TB-350 |
3-1/2" |
88.9 |
3-13/16" |
96.8 |
| TB-356 |
|
90.5 |
|
98.4 |
| TB-363 |
3-5/8" |
92.1 |
3-15/16" |
100.0 |
| TB-375 |
3-3/4" |
95.3 |
4-1/16" |
103.2 |
| TB-400 |
4" |
101.6 |
4-5/16" |
109.5 |
| TB-406 |
|
103.2 |
4-7/16" |
111.1 |
| TB-413 |
4-1/8" |
104.8 |
4-7/16" |
112.7 |
| TB-425 |
4-1/4" |
108.0 |
4-9/16" |
115.9 |
| TB-450 |
4-1/2" |
114.3 |
4-13/16" |
122.2 |
| TB-456 |
|
115.9 |
|
123.8 |
| TB-475 |
4-3/4" |
120.7 |
5-1/16" |
128.6 |
| TB-500 |
5" |
127 |
5-5/16" |
134.9 |
| TB-525 |
5-1/4" |
133.4 |
5-9/16" |
141.3 |
| TB-550 |
5-1/2" |
139.7 |
5-13/16" |
147.6 |
| TB-575 |
5-3/4" |
146.1 |
6-1/16" |
154.0 |
| TB-600 |
6" |
152 |
6-5/16" |
160.3 |
| TB-625 |
6-1/4" |
158.8 |
6-9/16" |
166.7 |
| TB-650 |
6-1/2" |
165.1 |
6-13/16" |
173.0 |
| TB-675 |
6-3/4" |
171.5 |
7-1/16" |
179.4 |
| TB-700 |
7" |
177.8 |
7-5/16" |
185.7 |
| TB-725 |
7-1/4" |
184.2 |
7-9/16" |
192.1 |
| TB-750 |
7-1/2" |
190.5 |
7-13/16" |
198.4 |
| TB-775 |
7-3/4" |
196.9 |
8-1/16" |
204.8 |
| TB-800 |
8" |
203.2 |
8-5/16" |
211.1 |
| TB-825 |
8-1/4" |
209.6 |
8-9/16" |
217.5 |
| TB-850 |
8-1/2" |
215.9 |
8-13/16" |
233.8 |
